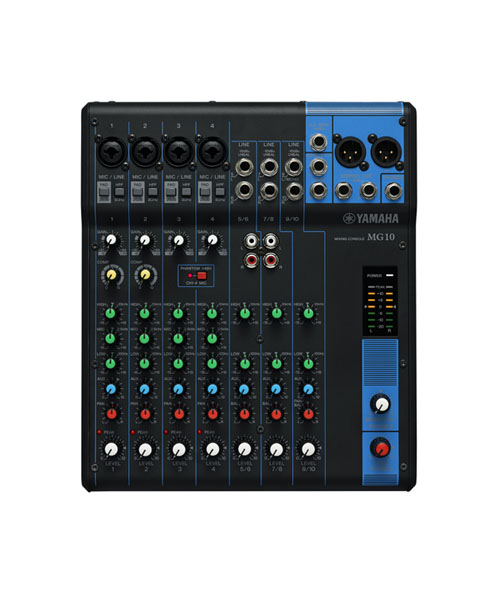

YAMAHA MG10 Analog Mixer 10 Input เครื่องผสมสัญญาณเสียง มิกเซอร์ อนาล็อก 10 ชาแนล

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a “signature” sound, and the MG Series is no exception.

Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix.

Equipped with some of the same state-of-the-art functionality featured on Yamaha’s high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan.

The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.

10-Channel Mixing Console

Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)

1 Stereo Bus

1 AUX (incl. FX)

“D-PRE” mic preamps with an inverted Darlington circuit

1-Knob compressors

PAD switch on mono inputs

+48V phantom power

XLR balanced outputs

Metal chassis

Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)

Outline

I/O

• 	Phantom power	+48 V
  Input Channels	Mono[MIC/LINE]	4
  	Stereo[LINE]	3

Output Channels

• 	STEREO OUT	2
  	MONITOR OUT	1
  	PHONES	1
  	AUX SEND	1

Bus

• Stereo: 1, AUX[FX]: 1

Input Channel Function

• 	PAD	26 dB (Mono)
  	HPF	80 Hz, 12 dB/oct (Mono)
  	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
  	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
  	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
  	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
  	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
  	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

General specifications

Total harmonic distortion

• 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response

• +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level

• 	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)

Crosstalk

• -83 dB

Power requirements

• PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha

Power consumption

• 22.9 W

Dimensions

• 	W	244 mm (9.6″)
  	H	71 mm (2.8″)
  	D	294 mm (11.6″)

Net weight

• 1.9 kg (4.19 lbs.)

Accessories

• Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A

Others

• Operating Temperature: 0 to +40˚C

Net Weight: 1.9 kg (4.19 lbs.)
