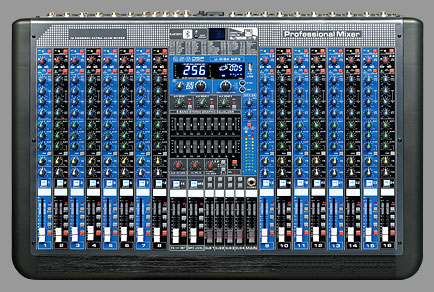

NTS GX-16 มิกเซอร์ 16 โมโนอินพุท + 256 DSP / USB BLUETOOTH function

NTS GX-16 มิกเซอร์ 16 โมโนอินพุท + 256 DSP / USB BLUETOOTH function

Main Feature

- 16 channel mixer (16 mono input)

- Insert point on all input

- 3 band EQ with sweepable midrange on all input

- 3 Aux send for external effects and monitoring

- Peak LED on all input

- LOW CUT switch on all input

- MUTE and SOLO switch on all input

- Built in 256 program digital effect

- USB interface for MP3 input and playback with digital display

- Dual 9 band graphic EQ

- Stereo output and 4 group output

- BLUETOOTH function

- USB interface for connect the computer

- +48V phantom power supply

Technical Specification

Frequency Response < 10Hz - 150KHz, -1dB

  < 10Hz - 200KHz, -3dB

T.H.D. 0.005% / 0.004% A-weighted

Signal to Noise Ratio 110dB / 112dB A-weighted

EQ : High +/-15dB, 12KHz

       : Mid +/-15dB, sweepable from 100Hz to 8KHz

       : Low +/-15dB, 80Hz

Power Requirement AC 100V to 240V, 50/60Hz
