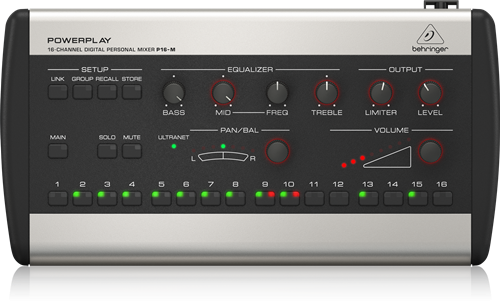

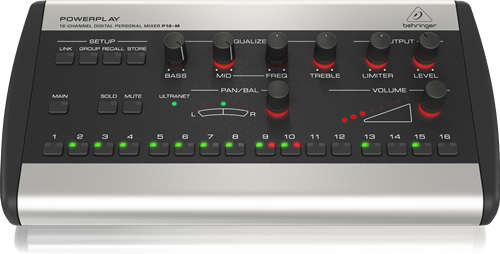

Behringer POWERPLAY P16-M 16-Channel Digital Personal Mixer

Easy Installation

     A basic installation consists of one P16-I Input Module, which connects to the main mixing console and up to six P16-M Personal Mixers, creating a system big enough to equip a typical recording studio, small to medium-sized band or worship team. You’ll also need a few standard audio and Cat 5e cables. The optional P16-MB mounting bracket allows the P16-M Digital Personal Mixer to be attached to any standard microphone, music or drum stand. As many as six P16-D Digital ULTRANET Distributors can be added to your system to accommodate up to forty-eight P16-M Personal Mixers.

Features Galore

     Not only is the P16-M easy to use, but it’s also big on quality. You’ll enjoy audiophile-grade sonic performance, 16 storable presets for custom mixes, 16 Channel Select buttons complete with dual LED indicators for quick and easy visual reference, and so much more. Need to hear just one element of your mix – just hit the Solo button. Someone playing out of time – select the Mute button for that input. Additionally, the global EQ and “drummer-proof” output level control ensure you’ll hear your perfect mix, in all its pristine glory.

Extraordinary Value

     The POWERPLAY P16 Personal Monitoring System puts total control of the monitor system where it belongs – in the hands of the performers, freeing up the engineer to sculpt the perfect front-of-house mix. By putting dynamic control over virtually all elements (Volume, Pan, Solo & Mute) of up to 16 input signals within each performer’s reach, the P16 Personal Monitoring System provides the easy and affordable way to give them exactly what they want – “more me!” Check the P16-M out today – and experience the ultimate in live and studio personal monitoring.

Features:

• 16-channel digital stereo mixer to create your personal monitor mix
• Ultra-intuitive “analog” operation with total recall and 16 presets for custom mixes
• State-of-the-art 24-bit D/A converters for premium audio quality
• 16 Channel Select buttons with dual LEDs for perfect overview
• Level and Pan/Spread control per channel with LED meter
• 3-band EQ per channel with mid-band frequency control
• Solo and Mute functions per channel
• Global Level and EQ controls plus Panic Mute function
• High power and “drummer proof” headphones output
• Fully adjustable limiter protects your ears and headphones
• Additional mono/stereo line output to connect your powered monitor
• MIDI IN port for real-time remote control of all channels by external MIDI device such as BEHRINGER BCF2000, BCR2000, etc.
• Standard CAT5e connection delivers power and 16 signals to each Personal Mixers
• ULTRANET connector to daisy-chain up to forty-eight P16-M mixers for large systems (in conjunction with P16-D)
• Ultra-low system latency of less than 1 millisecond
• Powered via external power supply (included) or P16-I / P16-D
• Mounts easily on a mic stand with the P16-MB mic stand mount (not included)
• Designed and engineered in Germany
