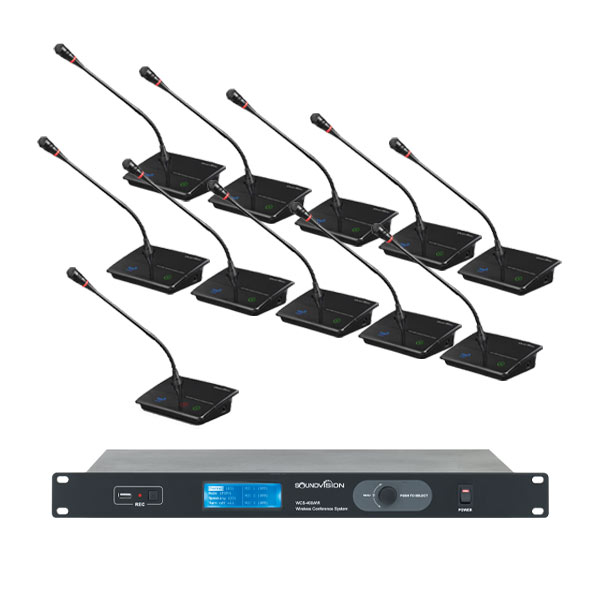

SOUNDVISION WCS-400-PRO SET ชุดไมค์ประชุมไร้สาย ดิจิตอล 11 ท่าน (ไมค์ประธาน 1 ท่าน ไมค์ผู้ร่วมประชุม 10 ท่าน) พร้อมเครื่องชาร์จแบตเตอรรี่

Soundvision WCS-400MR Wireless Controller Unit with Recorder

Soundvision WCS-400MR เครื่องควบคุมชุดประชุมระบบไร้สายพร้อมช่อง USB สำหรับบันทึกเสียงประชุม สามารถใช้งานไมโครโฟนชุดประชุมในระบบเดียวกันได้มากถึง 50 ชุด WCS-400MR Wireless Controller จากแบรนด์ Soundvision

WCS-400 Series is a new UHF Wireless Conference System, this series includes Controller Unit with Recorder (WCS-400MR), Discussion Desktop Unit for Chairman (WCS-400CL chairman) and Discussion Desktop Unit for Delegate (WCS-400DL delegate). This series simple and elegant design, plug-and-play and easy to move without wiring connection.

WCS-400MR with high flexibility and reliability, Controller Unit offers simple operation with FIFO microphone mode, built in USB port for recording in MP3 format and Support up to 32GB drive. This series can be perfectly integrated into any conference rooms or meeting rooms without additional wiring. It’s the best wireless conference solutions for small scale conferences.

• LCD display for status information and function.
• Built in USB port for recording in MP3 format and Support up to 32GB.
• With HD circuit design, system create high performance sound quality.
• Maximum 20 sets system can be used at the same venue.
• Control for up to 50 wireless discussion units.(included 1 unit chairman) can be connected with one central control.
• Easy to move and easy to Installation without problem wiring connection.
• Up to 3 open microphones at the same time.
• Operational microphone modes: FIFO mode: delegates can override each other simply by activating their microphones. (1/2/3)
• Typical range 60 m (200 ft).
• Built-in rack mount kit easy to store and installed in a standard 19 inches 1U rack.

• Audio channel
  Transmission method	UHF Wireless (one way)
  Audio channel	3
  Carrier frequency band	UHF 803.2 ～ 805.8MHz
  	( depend on local regulation )
  Modulation method	FM
  Receiving sensitivity	>-112dbm
  Audio gain	+5dbm
  Frequency response	45Hz ～ 18KHz ±1dB
  S/N Ratio	>105dB
  T.H.D.	<0.7%
  Data control channel
  Transmission method	Wireless (two-way)
  Data channel	20
  Frequency Range	433MHz ～ 437MHz
  Modulation method	FSK
  Receiving sensitivity	>-112dbm
  Transmission consumption	10mW
  Communication rate	100KBPS
  Frequency deviation	±400Hz
  System
  Power supply	DC 12V-18V
  Signal covering range	Radius 60 meters
  Consumption Rating	36W
  Operating temperature range	5°C ～ 50°C
  Dimensions	421 x 225 x 45 mm
  N.W.	2.4kg
