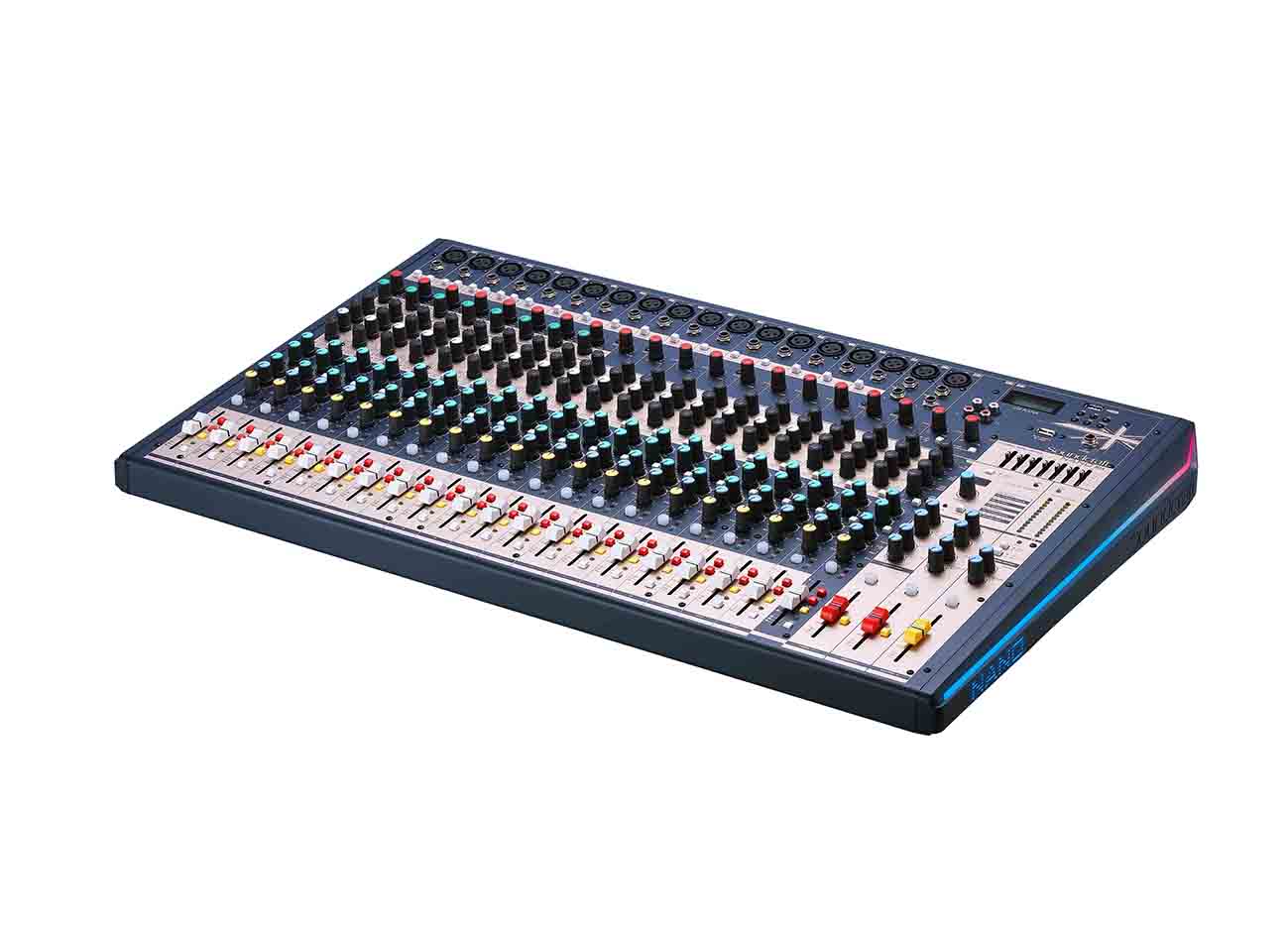

Soundcraft Nano M24 24 Channel compact analog mixer

Soundcraft Nano M24 24 Channel compact analog mixer

มิกเซอร์อนาล็อค SOUNDCRAFT Nano M24, 24 ชาแนล 16 mono ช่องสเตอริโอ 3 ช่อง มี USB สามารถเล่น MP3, 8 compressor and 8 breakpoints inserted into the interface, Built-in 24-bit DSP effector, 100 preset effects

SOUNDCRAFT NANO series M24 (24 channels) are professional compact analog mixers with outstanding quality, high reliability, cutting-edge and fashionable appearance design, natural and smooth sound interpretation, open and accurate sound, suitable for band performances , Professional recording and fixed installation applications.

The engineering design of the M24 mixer incorporates the functions required for live mixing and professional recording 8 mono channel input, ultra-low noise microphone preamplifier and +48 V phantom power supply; 4 channels Stereo input channel; mono input is equipped with 3-band equalizer and mid-frequency sweep; stereo input is equipped with 4-band equalizer; 4 auxiliary controls; high-precision 12-band level indicator; 2-track input can be assigned to the main mix , Control room/headphone output, etc.

The M24 has a cutting-edge fashion, highly technological appearance design, novel and unique panoramic LED atmosphere level lights, which can add a gorgeous dynamic visual effect to the live performance.

Built-in USB player, supports MP3 format audio file playback and recording storage. 24-bit DSP effector, providing 100 preset effects. The main mix output has a 7-band graphic equalizer and supports breakpoint insertion.

The M24 mixer is upgraded with durable steel, and all interfaces are made of professional-grade metal. The body is compact and lightweight, and the appearance is dynamic and stylish. It is ideal for band performances, professional recording or fixed installation applications.

Features:

• Ultra-low noise discrete microphone preamplifier and +48V phantom power supply.
• 16 mono input and 4 stereo input channels.
• Each mono input supports balanced XLR microphone input and balanced TRS line input.
• Each mono microphone input channel supports low frequency cut.
• Each mono input channel is equipped with a 3-band equalizer, with an intermediate frequency sweep, and a peak LED indicator.
• 2 stereo input channels support mono XLR and TRS input; 2 stereo input channels support RCA input.
• Each stereo input channel has a 4-band equalizer and peak LED indicator.
• 8 compressor controls and 8 breakpoints are inserted into the interface.
• AUX 1 and AUX 2 send the attenuated pre/post channel signal to the monitor or external effector; AUX 3 and FX send the attenuated channel signal to the built-in effector or monitor.
• Each channel supports PFL (pre-attenuation monitoring) and mute functions, and the fader stroke is 60 mm.
• Each channel has group 1/2, group 3/4 and main mix left/right bus assignment.
• The main sound mix uses balanced XLR and unbalanced TRS output interfaces, and is equipped with a 7-band graphic equalizer.
• The main mix supports breakpoint insertion.
• Built-in 24-bit DSP effector, providing 100 preset effects.
• Built-in USB player, supports MP3 format audio file playback and recording storage.
• Internal switch mode power supply, compatible with 100-240V voltage.
• Equipped with a USB port, it supports the main output recording, or playback through CH23/24 (M24) channels.
