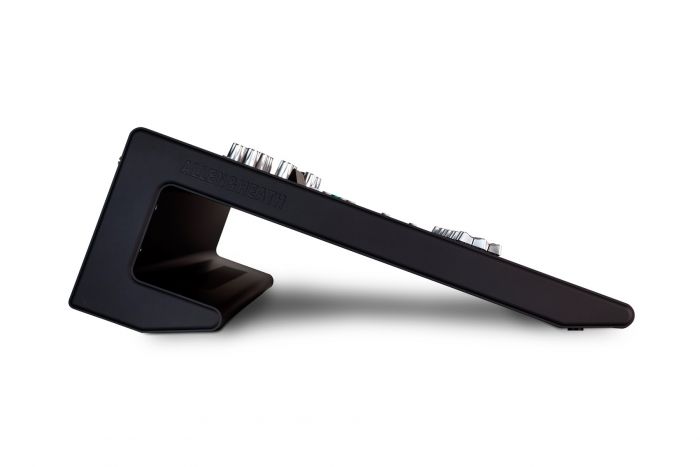

ALLEN & HEATH QU24 มิกเซอร์ดิจิตอล
The chrome edition Qu-24 30-In/24-Out Digital Mixer from Allen & Heath features 24 of Allen & Heath’s AnalogiQ microphone preamps and is powered by its 5-core ARM processor to provide a variety of integrated effects and processing including channel-independent 4-band parametric EQs, compressors, delay, reverb, and more.
The mixer is capable of recording audio to either your Mac or a USB hard drive in up to 48 kHz/24-bit resolution, allowing you to record both the individual tracks and live mix of your shows. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8).
The mixer is compatible with both the ME monitoring system and dSNAKE digital connectivity system from Allen & Heath. The Qu-24 can also be used with the Qu-Pad app, allowing you to use your iPad to mix from anywhere in the venue when connected to a wireless network.
Features:
- Chrome Knobs & Faders + Updated Firmware
- 24 AnalogiQ Preamps
- 5″ Touchscreen
- 25 Motorized 100mm Faders with Recall
- 5-Core ARM Processor
- Integrated iLive FX
- Record Audio to Mac or USB Hard Drive
- 48 kHz/24-Bit Resolution
- iPad App for Wireless Mixing
- dSNAKE Compatible
Specifications

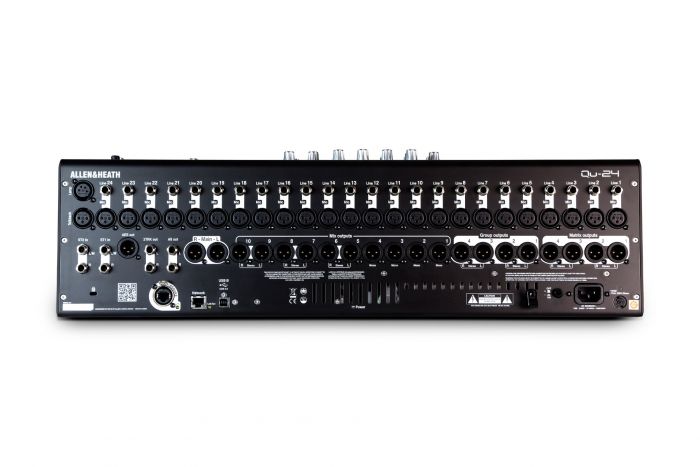

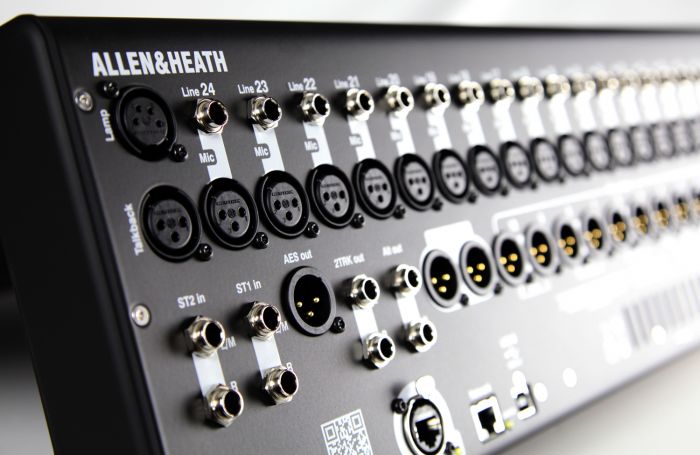

| Inputs |
| Mic/Line Inputs |
24x Balanced combo XLR/TRS jacks, fully recallable
Input Sensitivity: -60 to +10 dBu (XLR), -50 to +20 dBu (TRS)
Analog Gain: -10 to +60 dB, 1 dB steps
Maximum Input Level: +19 dBu (XLR), +29 dBu (TRS)
Input Impedance: >5 kOhms (XLR), >10 kOhms (TRS)
THD+N, Unity Gain 0 dB: 0.0005%, -89 dBu (20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz)
THD+N, Mid Gain +30 dB: 0.001%, -83dBu 20 Hz to 20 kHz, direct out @ 0 dBu, 1 kHz) |
| Stereo Line Inputs |
ST1, ST2 Connector: Balanced, 1/4″ (6.3 mm) TRS Jack, half-normalled
ST3 Connector: Unbalanced 1/8″ (3.5 mm) mini jack
Input Sensitivity (ST1, ST2, ST3): +4 dBu/0 dBu, nominal
Trim: +/-24 dB
Maximum Input Level (ST1, ST2, ST3): +22 dBu/+18 dBu
Input Impedance: >7 kOhms |
| Outputs |
| Line Outputs |
Mix 1 to 10, GRP 1 to 4, MTX 1 to 4, LR Out: Balanced XLR
Output Impedance: <75 Ohms
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -90 C31 dBu (muted, 20 Hz to 20 kHz) |
| Stereo Output |
Alt Output & 2 Trk Output: Balanced 1/4″ (6.3 mm) TRS jacks
Source (Alt Output/2 Trk Output): Patchable/LR post fade
Output Impedance: <75 Ohms
Nominal Output: +4 dBu = 0 dB meter reading
Maximum Output Level: +22 dBu
Residual Output Noise: -91 dBu (muted, 20 Hz to 20 kHz) |
| AES Digital Audio Outputs |
2-channel
48 kHz sampling rate
XLR Out
2.5 Vpp balanced terminated 110 Ohms |
| dSNAKE |
| Inputs |
Remote source for Channels 1 to 24, ST1, ST2, ST3 |
| Outputs |
Remote outputs for Mix 1 to 10, LR
Compatible with AudioRacks AR2412, AR84
Compatible with ME personal mixing system |
| System |
| Dynamic Range |
112 dB |
| Frequency Response |
20 Hz to 20 kHz (+0/-0.5 dB) |
| Headroom |
+18 dB |
| Operating Level |
Internal Operating Level: 0 dBu |
| Alignment |
dBFS: +18 dBu = 0 dBFS (+22 dBu @ XLR output) |
| Calibration |
Meter Calibration: 0 dB meter = -18 dBFS (+4 dBu @ XLR output) |
| Indicators |
Meter Peak Indication: -3 dBFS (+19 dBu @ XLR out), multi-point sensing
Meter Signal Indication: -48 dBFS (-26 dBu @ XLR out)
Meter Type: Fast (peak) response |
| Sampling Rate |
48 kHz +/-100 PPM |
| Converters |
24-bit Delta-Sigma |
| Latency |
1.2 ms (local XLR in to XLR out)
0.7 ms (local XLR in to AES out) |
| Operating Temperature |
32° to 95°F (0° to 35°C) |
| Power |
Mains Power: 100-240 V AC, 50/60 Hz, 120 W maximum |
| Controls |
| Faders |
4″ (100 mm), motorized |
| Touchscreen |
5″ TFT, 800 x 480 resolution |
| Softkeys |
10 |
| Mute Groups |
4 |
| Network |
TCP/IP Ethernet for MIDI commands and iPad app |
| Input Processing |
| Source |
Channels 1 to 24: Local, dSNAKE, or USB
ST1, ST2, ST3: Local, dSNAKE, or USB |
| Stereo Linking |
Odd/even input pairs
Parameters Linked: EQ, dynamics, insert, delay, assignments, sends
Link Options: Preamp, polarity, sidechains, fader, mute, pan |
| Polarity |
Normal & reverse |
| HPF |
12 dB/octave, 20 Hz to 20 kHz |
| Insert |
Assign FX to input channels |
| Delay |
Up to 85 ms |
| Gate |
Self-key sidechain
Threshold: -72 dBu to +18 dBu/
Depth: 0 to 60 dB
Attack: 50 μs to 300 ms
Hold: 10 ms to 5 s
Release: 10 ms to 1 s |
| Equalizer |
4-band fully parametric, 20 Hz to 20 kHz, +/-15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave |
| Compressor |
Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 1 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag |
| Output |
Channel Direct Out to USB: Follow fader, follow mute (global options)
Source Select (Global): Post-preamp, pre-EQ, post-EQ, post-delay |
| Mix Processing |
| Insert |
Assign FX into Mix channels |
| Delay |
Up to 170 ms |
| Equalizer |
Graphic EQ: Constant 1/3 octave, 28 bands from 31 Hz to 16 kHz, +/-15 dB
Parametric EQ: 4-band fully parametric, 20 Hz to 20 kHz, +/- 15 dB
Band 1: Selectable LF shelving (Baxandall), bell
Band 2 & 3: Bell
Band 4: Selectable HF shelving (Baxandall), bell
Bell Width: Non-constant Q, variable, 1.5 to 1/9 octave |
| Compressor |
Self-key sidechain
Threshold: -46 to 18 dBu
Ratio: 1:1 to infinity
Attack: 300 μs to 300 ms
Release: 100 ms to 1 s
Knee: Soft or Hard
Types: Peak manual, RMS manual, SlowOpto, PunchBag |
| Effects |
Internal FX: 4x RackFX engines, Send>Return or Inserted
Types: Reverbs, delays, gated reverbs, ADT, chorus, symphonic chorus, phaser, flanger
4x Dedicated Stereo FX Returns: Fader, mute, routing to Mix/LR, 4-band PEQ |
| Audio Tools |
| PAFL |
PFL or stereo in-place AFL
0 to -24 dB trim
85 ms delay |
| Talkback |
Assignable to any mix
12 dB/octave HPF |
| Signal Generator |
Assignable to any mix
Sine, white, pink, bandpass noise |
| RTA |
31-bands, 1/3 octave 20 Hz to 20 kHz
Follows PAFL source |
| General |
| Dimensions (WxDxH) |
Desk-Mounted: 24.9 x 19.7 x 7.4″ (632 x 500 x 186 mm) |
| Weight |
31 lb (14 g) |
| Packaging Info |
| Package Weight |
43.4 lb |
| Box Dimensions (LxWxH) |
30.75 x 26.5 x 13.75 |
|
