BOSE F1 model 812 Flexible Array Loundspeaker

How it works

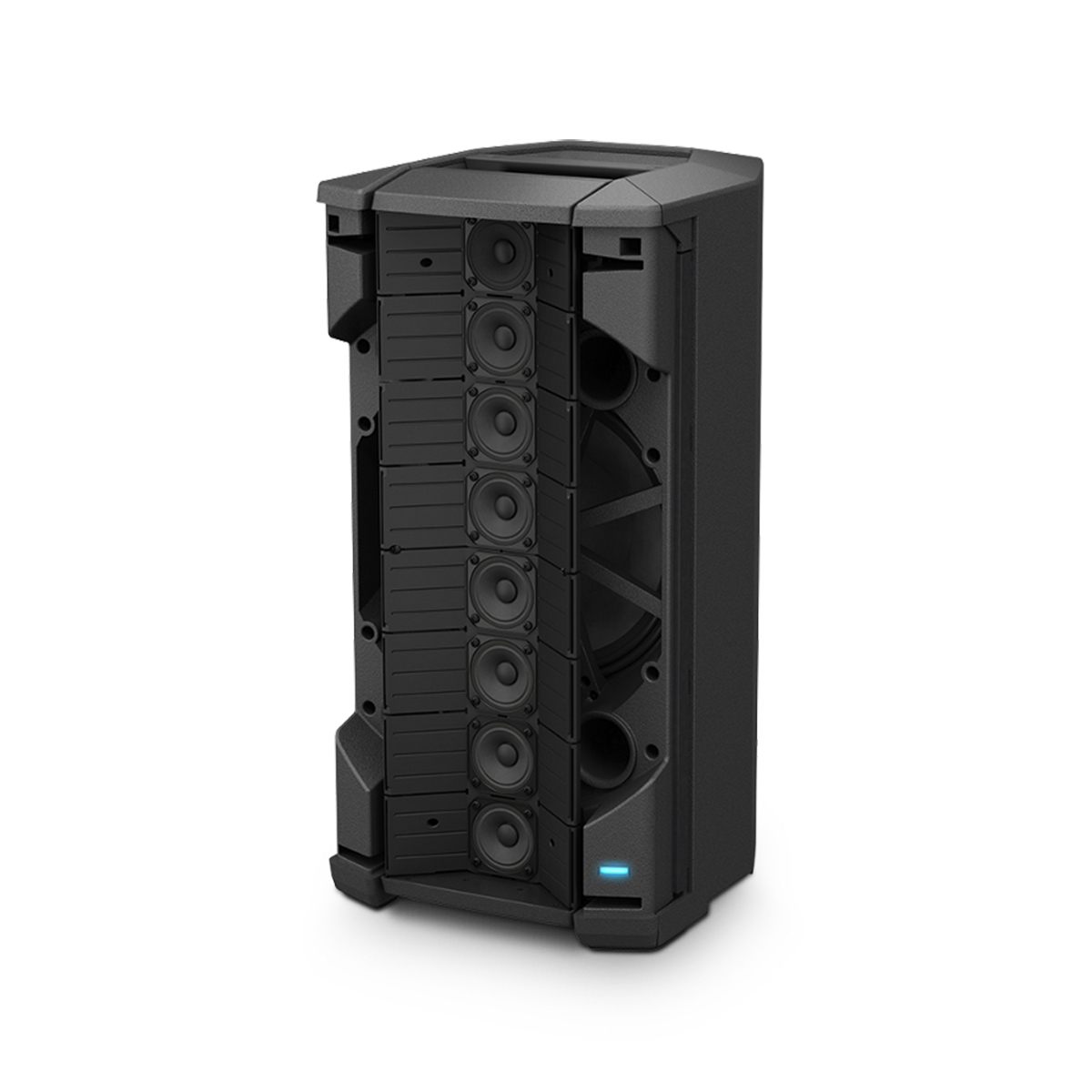

The eight drivers on the F1 Model 812 Flexible Array loudspeaker are mounted on a specially designed flexible baffle. Simply push or pull the array into position to create four vertical coverage patterns: “Straight,” ”J,” “Reverse J,” or “C.” Once set, the system automatically changes the EQ to maintain optimum tonal balance for each unique coverage pattern.

F1 Model 812 Flexible Array Loudspeaker

• FLEX array: Bose® exclusive flexible baffle can be configured into four unique shapes, allowing you to choose the best possible coverage pattern for the application
• Eight-driver mid/high line array: Eight vertically mounted drivers, each mounted on a custom waveguide, help deliver wide, consistent coverage
• 12-inch LF driver: High-performance woofer provides strong low-frequency output

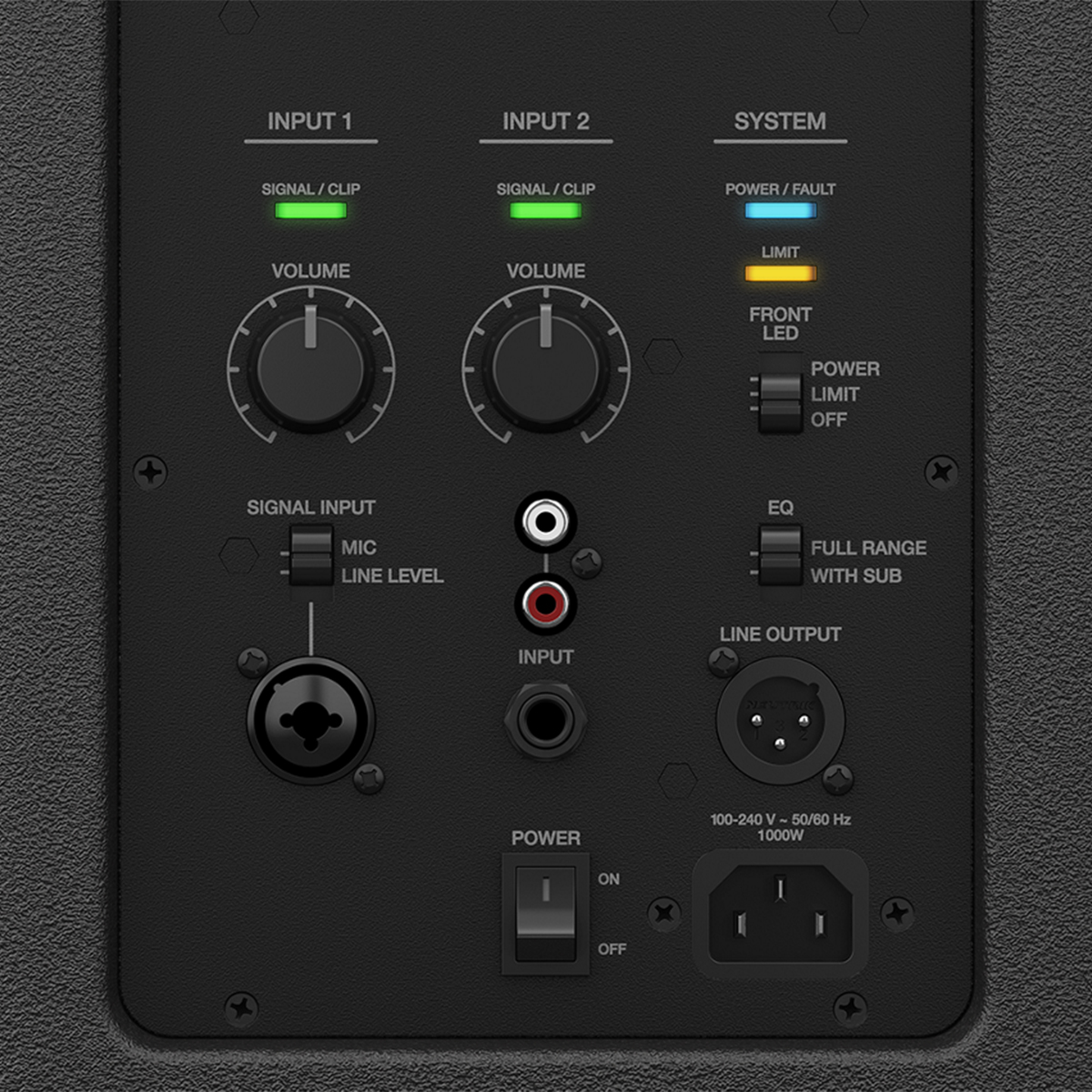

• 2-channel integrated mixer: 2 inputs with independent level controls accommodate XLR, 0.25-inch and RCA connectors

Technical Summary

• Frequency Response (-3 dB) 52 Hz - 15.5 kHz

• Frequency Range (-10 dB) 43 Hz - 20 kHz

• Nominal Dispersion C: 100° H x 40° V

• Maximum SPL @ 1 m 132 dB SPL (peak)

• Rated Power 1,000 W

Key Features

• Flex array is a flexible baffle that can be configured into four unique shapes (“Straight,” “C,” “J” or “Reverse J”), allowing the customer to choose the best possible coverage pattern for the application

• Vertically oriented 8-driver mid/high line array, with each driver mounted on a custom 100° waveguide, helps deliver wide, consistent coverage

• 12-inch LF driver provides high performance at low frequency for strong low-frequency output

• Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver

• 2 input channels with independent volume controls and Line Level/Mic switch on Channel 1

  Physical

  Enclosure
  F1 Model 812: High impact composite materials

  Dimensions
  F1 Model 812 loudspeaker: 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)
  F1 system stack: 73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

  Net Weight
  F1 Model 812 loudspeaker: 44.5 lbs (20.18 kg)
  F1 system stack: 101.5 lbs (46.0 kg)

  Color
  Black

  Package Contents
  1 F1 Model 812
  1 IEC Line Cord
  1 Owner’s Guide
