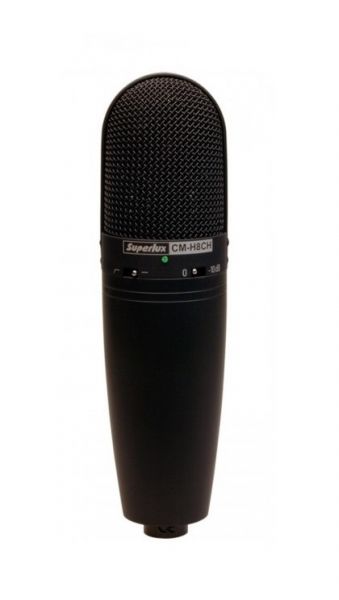

SUPERLUX CM-H8CH Large Diaphragm, "Smile Curve" Frequency Response

SUPERLUX CM-H8CH Large Diaphragm, "Smile Curve" Frequency Response

The CMH8H series microphones are similar to the CMH8C/B/A large diaphragm microphones except for an enhanced frequency response. These 3 black versions keep the same pattern variations as the CMH8 series but the external appearance has been changed and they have an extended frequency performance in the bass register and additional high frequency enhancement. For convenience, an LED indicator will illuminate when phantom power is present.

Features:

• 1" gold-evaporated diaphragm
• FET custom transformer
• A5 protective plastic carrying case

Tech Specs

Type: True condenser,Ø1" (Ø25.4 mm) ,dual diaphragm
Polar pattern: Variable polar pattern from figure 8, cardioid and omni
Frequency response:30-20,000 Hz
Low Frequency Filter: 100 Hz, (internal)
Pad: -10 dB
Sensitivity: -30.5 / -35.4 / -30.5 dBV/Pa (30 / 17 / 30 mV)
Rated impedance: 200 Ω
Minimum load impedance: 1000 Ω
S/N Ratio: 80 / 76 / 80 dB
Equivalent Output Noise: 14 / 18 / 14 dB
MAX. SPL: 138 / 142 / 138 dB SPL
Dynamic range at 1 kΩ load: 124 dB
Power supply: 48 V DC 2.7 mA
Finish: Black
Connector: XLR3M
Dimensions: Ø54 × 200 mm(Ø2.13" × 7.87")
Net weight:567 g(20 oz)
Accessories Furnished: HM8B adapter, YA2 threaded adapter, S65 windscreen, HM26A shock mount
Optional Accessories: PS2A phantom power supply, HM48B, HM58B table arm, HM18AG pop filter,
MS158 big mic stand
Packaging: A5 protective carrying case, colorful outer packaging
