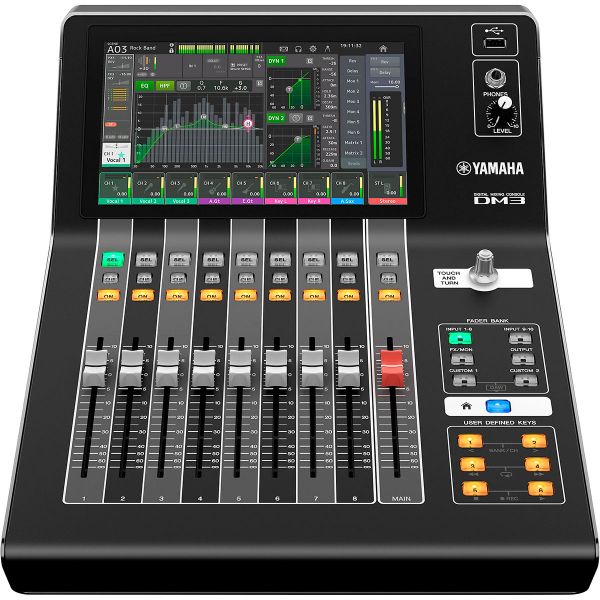

Yamaha DM3S ดิจิตอลมิกเซอร์ 22-channel Digital Mixer
22-channel Digital Mixer with 16 Mic Preamps, 9 Motorized Faders, 9" Touchscreen, 18-in/18-out USB Audio Interface, 2-in/2-out USB Recording, DAW Control, and DSP
Description
The Yamaha DM3S is the ideal starting point for any audio engineering endeavor with its transparent, uncolored sound. Capable of sampling rates as high as 96kHz despite its compact size the DM3 Series builds upon a legacy of sonic purity, offering you the perfect toolset for mixing, recording, livestreaming or even installed applications.
The DM3S is an ultracompact 22-channel digital mixer that is always ready for your next gig. When not on stage, the DM3S can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a 9" touchscreen and a single Touch & Turn knob for managing most of the console's operations.
Yamaha DM3S 22-channel Digital Mixer Features:
- 8 + 1 fader configuration
- Input mixing channels: 16 mono + 1 stereo + 2 FX return
- Packs 22 channels into an ultra-compact digital mixer: 16 mono channels, 1 stereo channel, and 2 stereo FX returns
- Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
- 9-inch touchscreen and single all-purpose touch-and-turn knob provide easy operation and navigation
- Capable of sampling rates as high as 96kHz
- Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
- 6 mono or 3 stereo mixes, 2 matrixes, and 1 stereo bus
- 16 outstanding mic preamps and 8 convenient analog outputs
- Excellent built-in DSP effects
- 18 x 18 USB audio interface for playback and recording
- 8 DCA groups with Roll-out
- 18 Effects, and GEQ on Mix 1-6 and Stereo channels
- Sampling rate: 48kHz/96kHz
- 2 x 2 recording directly to a USB drive
- DAW remote mode with transport control
- Custom control via OSC, USB-MIDI, and Yamaha's powerful ProVisionaire software applications
- Dimensions (W x H x D): 320 mm × 455 mm × 140 mm
- Net weight: 14.3 lbs
Tech Specs
| |
DM3-D |
DM3 STANDARD |
| Outline |
| Mixing Capacity |
Input Channels |
16 mono + 1 stereo + 2 FX return |
16 mono + 1 stereo + 2 FX return |
| Mix Buses |
6 |
6 |
| Matrices |
2 (Supports Input to Matrix) |
2 (Supports Input to Matrix) |
| Stereo Buses |
1 |
1 |
| FX Buses |
2 |
2 |
| Cue Buses |
1 |
1 |
| General specifications |
| I/O Connectors |
Analog Input |
16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) |
16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) |
| Analog Output |
8 (XLR) |
8 (XLR) |
| Dante |
2 (etherCON: Primary/Secondary) |
- |
| Network |
1 (RJ-45) |
1 (RJ-45) |
| USB TO HOST |
1 (USB Type-B, USB2.0) |
1 (USB Type-B, USB2.0) |
| USB TO DEVICE |
1 (USB Type-A) |
1 (USB Type-A) |
| Phones |
1 (TRS Phones) |
1 (TRS Phones) |
| DC |
1 (XLR 4pin, DC power IN) |
1 (XLR 4pin, DC power IN) |
| User Interface |
1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder |
1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder |
| Recording & Playback |
PC/Mac |
Recording 18 track, Playback 18 track |
Recording 18 track, Playback 18 track |
| USB storage device |
Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) |
Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) |
| Sampling frequency rate |
96 kHz / 48 kHz |
96 kHz / 48 kHz |
| Signal delay |
Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) |
Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) |
| Frequency response |
+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT |
+0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT |
| Total harmonic distortion |
Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 |
Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 |
| Hum & noise level |
Equivalent input noise |
-126 dBu typ., Input Gain= Max. |
-126 dBu typ., Input Gain= Max. |
| Residual output noise |
-84 dBu, ST main off*2 |
-84 dBu, ST main off*2 |
| Dynamic range |
110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
| Crosstalk |
-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 |
-100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 |
| Power requirements |
DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) |
DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) |
| Power consumption |
43 W |
43 W |
| Dimensions |
W |
320 mm (12.6") |
320 mm (12.6") |
| H |
140 mm (5.6") |
140 mm (5.6") |
| D |
455 mm (18.0") |
455 mm (18.0") |
| Net weight |
6.5 kg (14.3 lb) |
6.5 kg (14.3 lb) |
| Included Accessories |
Owner's Manual, Power Adapter, Download Information |
Owner's Manual, Power Adapter, Download Information |
| Accessories |
RK-DM3 |
RK-DM3 |
| Operating temperature |
0 - 40 °C |
0 - 40 °C |
| Storage temperature |
-20 - 60 °C |
-20 - 60 °C |
- *1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
- *2 Hum & Noise are measured with an A-Weight filter.
- *3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
|
