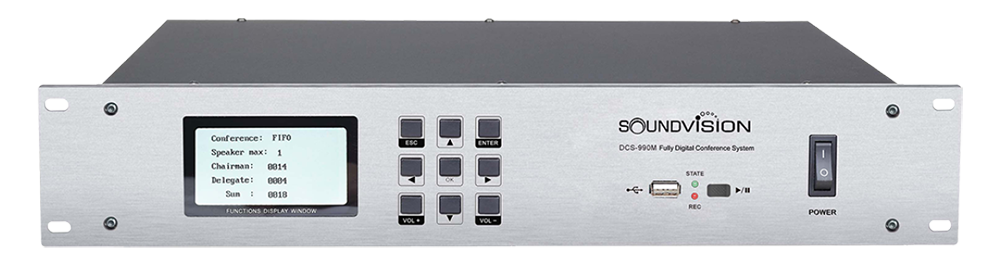

SOUNDVISION DCS-990M เครื่องควบคุมชุดไมค์ประชุมระบบดิจิตอล

• Fully digital conference system.
• Discussing and video-tracking combined conference system.
• Easy to control meeting mode and the number of speakers by the buttons on the panel.
• Large TFT LCD screen displays 240 x 128 dot matrix display conference mode working status.
• The microphone can open at same time: 1,2,3,4,5,6 and all microphone.
• The DCS-990M can support 60 microphone units. And can able to support microphone up to 5000 units by power extended machine.
• The electrical load and short circuit protection function.
• The power switch turn-on/off without silent noise.
• Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.
• Built in USB port for recording with light indicator. (Maximum 64GB)
• Built-in telephone coupler input and output ports, can be used for a remote meeting.
• Built-in DAFS Function Digital automatic feedback suppression is controlled It can facility automatically eliminates acoustic feedback.
• RS232 interface can be achieved using computer software to control entire conference system function.
• Built-in Video switcher processor 4IN/2OUT for Standard Definition (SD) video camera.
• Support control High Definition (HD) video camera and Standard Definition (SD) video camera up to 4 unit.
• Support protocol camera control Pelco-D, Pelco-P and Visca.
• Seven operational microphone modes:
  1. CHAIRMAN mode: Only chairman can speech.
  2. FIFO mode: After reaching limit number (1-6) when open new delegate microphone the first microphones will close automatic.
  3. LIFO mode: After reaching limit number (1-6) when open new delegate microphone the last delegate microphones will close automatic.
  4. LIMIT mode: Limit microphones (1-6) can open on the same time.
  5. FREE mode: All delegate microphones can open on the same time.
  6. REQUEST mode: The all delegate microphone unit can be open after the chairman approve only.
  7. TEST mode: Light-ring all delegate microphone in system will turn on for check all delegate microphone status is ready to used.
